Image Buttons
6 min
Introduction
This command allows you to send an image with interactive buttons. It is useful for collecting quick responses (e.g., feedback, confirmations, or selections) while displaying a visual reference.

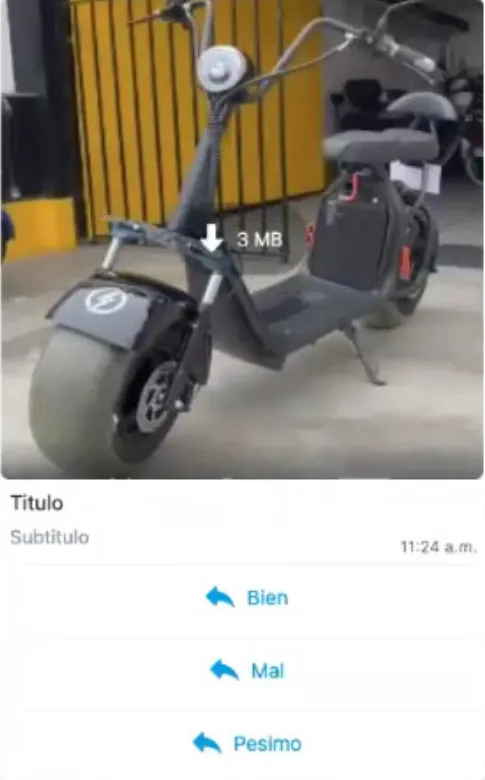

Image buttons preview
Command Syntax
#ButtonMix|Title|Subtitle|image*IMAGE_URL|button*Text1*id_1/button*Text2*id_2/button*Text3*id_3
How it works
- #ButtonMix → Defines the message type (multimedia with buttons).
- Title → Main text displayed above the image.
- Subtitle → Secondary text displayed below the title.
- image*IMAGE_URL → Link to the image file in .jpg (file size depends on CRM, commonly up to 5 MB).
- buttonTextid → Defines each interactive button:
- Text → The label shown on the button.
- id → The unique identifier of the response (must remain consistent for CRM integration).
- You can include 1 to 3 buttons. Adding more than 3 is not recommended, as it may affect clarity and display.
Example
#ButtonMix|Title|Subtitle|image*https://wisphub.io/static/img/wisp-bg-5.jpg|button*Good*id_good/button*Bad*id_bad/button*Terrible*id_terrible
Result
- The user receives a message containing an image, with a title, subtitle, and buttons.
- When clicking a button, the response is recorded with its corresponding ID.
- Your CRM may trigger an automated flow, such as:
- Saving the response in the database.
- Sending a thank-you message.
- Alerting the support team if the rating is low.
- Check how your CRM saves responses in their official documentation:
⚠️ Important Notes
- The image must be in .jpg format. Maximum file size depends on your CRM (commonly 5 MB).
- Button IDs must be unique and consistent across the system.
- Keep button texts short and clear.
- Do not add more than 3 buttons to avoid display issues.
